PRODUCTS CENTER

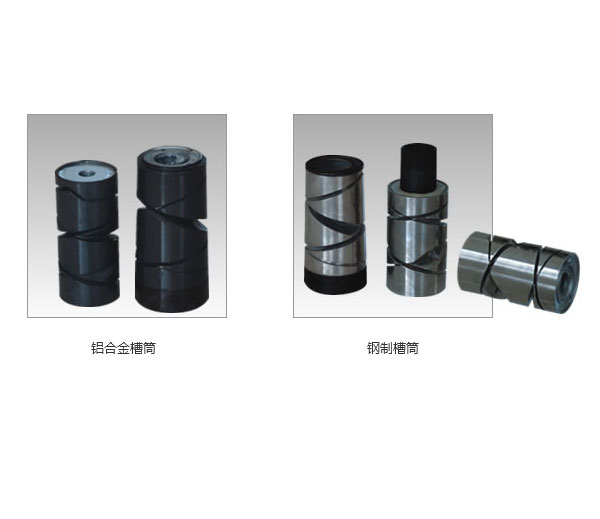

鋼制槽筒，鋁合金槽筒，規格齊全，可以互換，可滿足各種生產需要。
| 型號 | 導紗槽圈數 | 參數規格 | 絡紗筒管錐度 | |||
| 直徑 | 孔徑 | 長度 | 動程 | |||
| KFT01 | 2.5 | ￠82 | ￠20 | 176 | 152 | 3°30'5°57' |
| KFT02 | 2.5 | ￠82 | ￠20 | 176 | 152 | 5°57'9°15' |
| KFT03 | 2.5 | ￠82 | ￠20 | 176 | 155 | 0° 3°30' |
| KFT04 | 2.5 | ￠82 | ￠20 | 176 | 147 | 0° 3°30' |
| KFT05 | 2 | ￠94 | ￠35 | 165 | 152 | 4°20'9°15' |
| KFT06 | 2 | ￠94 | ￠20 | 176 | 152 | 4°20'9°15' |
| KFT07 | 2.5 | ￠94/100 | ￠47/52 | 168 | 6'' | 4°30'9°15' |
| KFT08 | 2 | ￠165 | ￠35 | 230 | 8'' | 0°00' |
| KFT09 | 2.5 | ￠80 | ￠20 | 180 | 152 | 3°30'5°57' |
| KFT10 | 2.5 | ￠80 | ￠20 | 152 | 130 | 3°30'5°57' |
| KFT11 | 2 | ￠90/100 | ￠47/52 | 168 | 6'' | 5°57'9°15' |
| KFT12 | 2 | ￠94 | ￠32 | 165 | 155 | 5°57'9°15' |
